What TerraSCADA Will Do
Specific operational functions and engineering capabilities directly sourced from technical documentation.
Vector Dynamic Single Line Diagrams (SLDs)
Resolution-independent electrical mimics with automatic line coloring based on bus voltage and breaker states.
Native IEC 61850 / Modbus Gateway
Direct protocol drivers eliminate third-party OPC middleware, cutting network hops and point failure risk.
Built-in High-Speed Historian
Sub-millisecond data logging with high-efficiency columnar compression and instant trend playback.
21 CFR Part 11 Audit Trail
Immutable chronological digital signatures and audit records for all operator actions and setpoint modifications.
Operational Use Cases & Field Impact
Actual documented use cases across Quality Assurance (QA), Reduced Manpower, Efficiency, and Asset Productivity.
QA & Quality Pass Rates (Chemical Transformation)
Quality pass rates (OOS) optimized instantly from legacy baseline of 93.8% up to 99.5% via total elimination of manual recipe dosing errors through automated SCADA controls.
Productivity (Batch Cycle Time Reduction)
Manufacturing batch cycle times reduced by over 34%, dropping from legacy baseline of 9.8 hours down to 6.4 hours through automated multi-screen sequencing.
Reduced Manpower (Consolidated Control Architecture)
Consolidated 5 separate control centers across utility solar blocks into a single centralized SCADA interface, removing redundant field technician staffing.
Efficiency (Real-Time Energy & Harmonics Telemetry)
Overlays live power harmonics, line currents, and transformer thermal stresses directly onto process mimics, preventing grid-side overloads.
Comparison with Traditional SCADA / Legacy Systems
Point-by-point contrast demonstrating the technological shift from legacy industrial automation to the Terrestrial Platform.
| Traditional Legacy Systems / Traditional SCADA | TerraSCADA Terrestrial Platform Advantage |
|---|---|

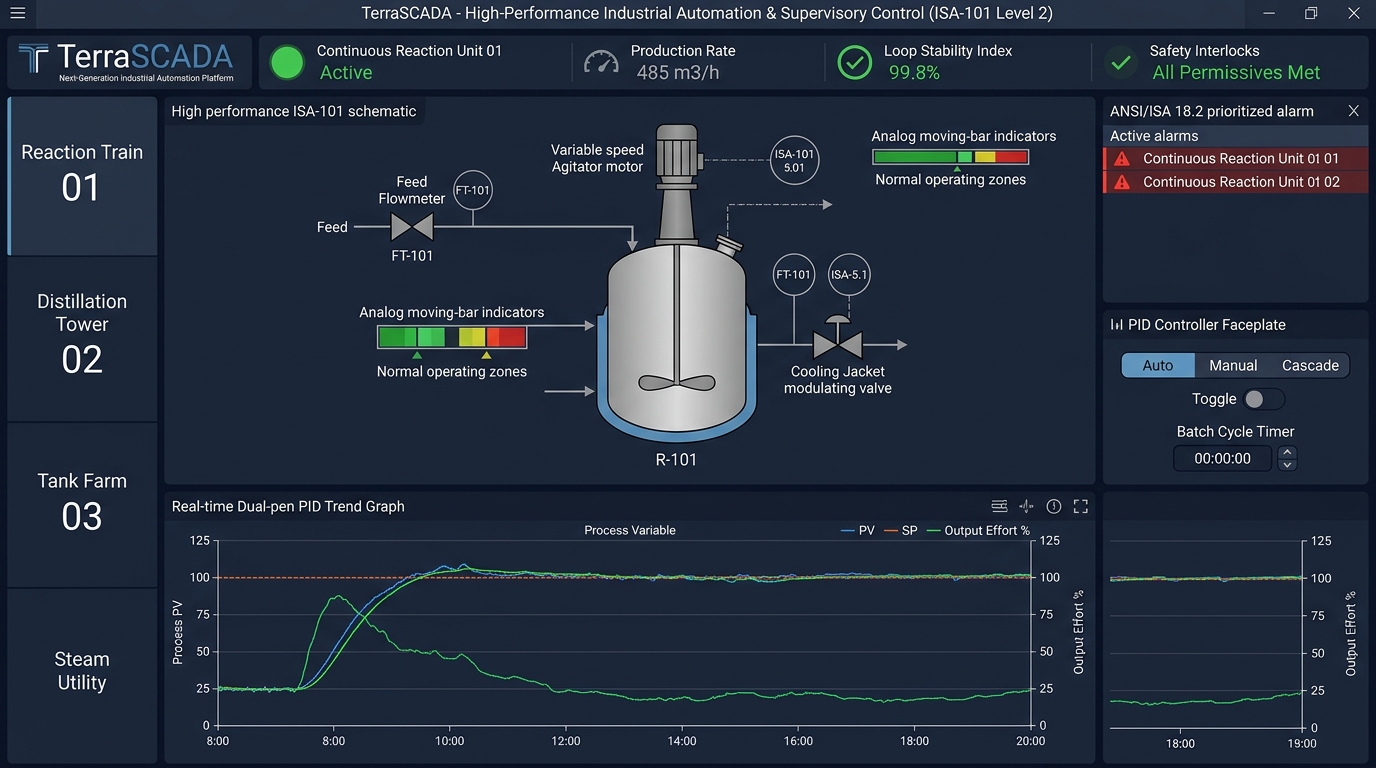

| Clunky bitmap graphics that distort on modern 4K monitors and require months of tedious drawing revisions. | Clean, responsive dynamic SVG Single Line Diagrams and process mimics compliant with ISA-101 human-machine interface standards. |
| Dumb indicators that only turn red when a parameter has already exceeded catastrophic limits. | Physics-aware predictive indicators that alert operators 20 minutes before temperature or pressure breaches limits. |
| Heavy proprietary workstation clients with steep per-seat licensing fees and vendor lock-in. | Web-native HTML5/WebGL cloud-native architecture supporting unlimited simultaneous concurrent enterprise users with 21 CFR Part 11 audit trails. |
End-to-End System Diagram & Data Pipeline
Visual architecture diagram representing field telemetry ingestion, deterministic edge fabric, AI reasoning, and closed-loop actuation.
