TerraHVAC: Thermodynamic AI Chiller Governance & Industrial Climate Management

CHILLED WATER LOOP: 7.0°C / 12.0°C
DELTA-T SYNC: 5.0°C Optimized
VFD PUMP MOD: 35-50 Hz Dynamic
COP OPTIMIZATION: +14.2% Seasonal
“Eliminating low delta-T syndrome and chiller plant waste through thermodynamic AI approach optimization and intelligent multi-mode scheduling.”
— THE OUTCOME-BASED REVOLUTION

TerraHVAC optimizes central chiller plants and industrial HVAC networks where cooling accounts for up to 60% of facility electricity. Running proprietary thermodynamic AI models, it eliminates low delta-T syndrome, dynamically tunes primary/secondary chilled water circuits, and optimizes cooling tower approach temperatures.

Explore Operational Interface ▾ What TerraHVAC Will Do ↓ Field Use Cases ↓ BirdEye Architecture ↓

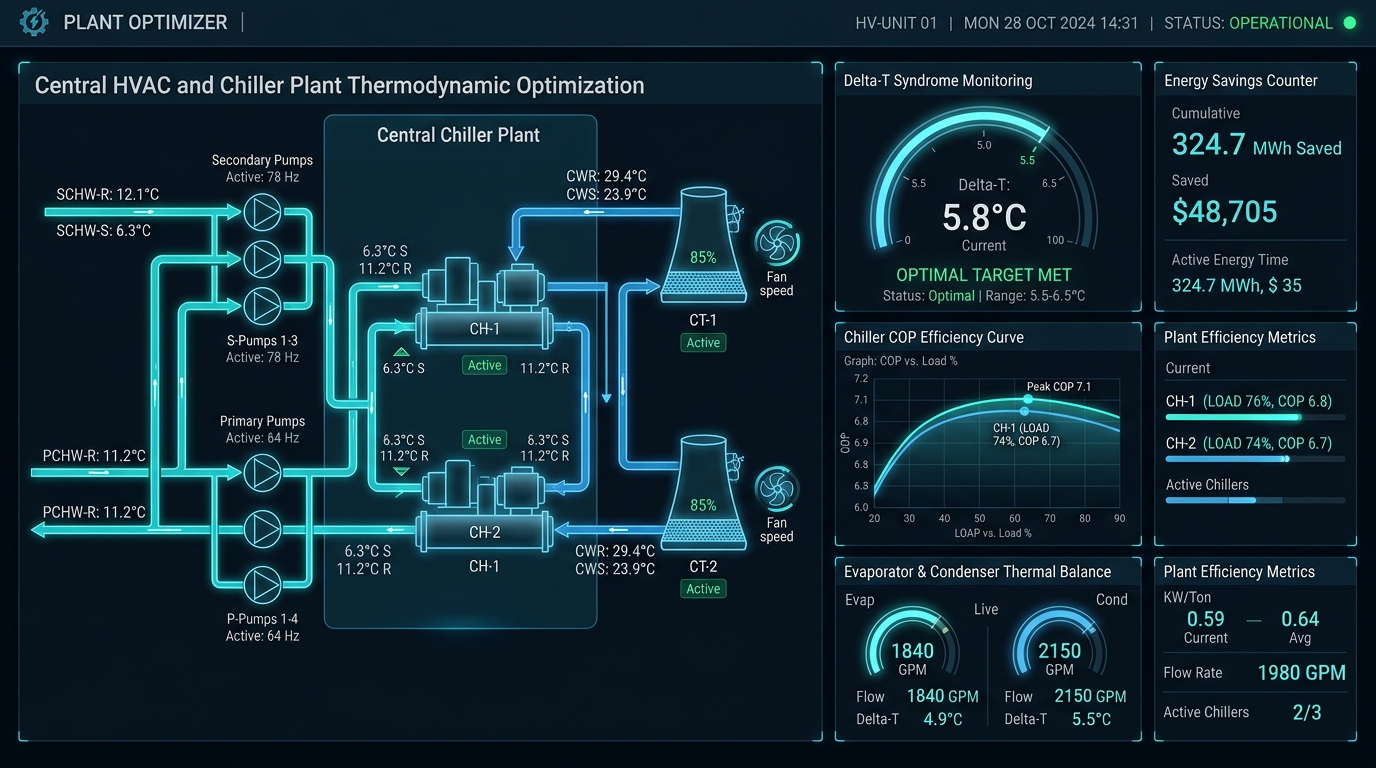

● TerraHVAC ANSI/ISA-101 Operational Interface & Real-Time System Representation
ANSI/ISA-101 Verified HMI
TerraHVAC Operational Interface
Application Operational Details

What TerraHVAC Will Do

Specific operational functions and engineering capabilities directly sourced from technical documentation.

⚡

Primary & Secondary Circuit Optimizer

Enhances the efficiency of primary cooling circuits and optimizes secondary distribution for maximum energy savings.

⚡

Approach Optimizer

Monitors and optimizes temperature approach in condensers and cooling towers, preventing scale-induced energy penalties.

⚡

Intelligent Multi-Mode Scheduler

Dynamically stages Free Cooling, Economizer, and Boost Cooling operations based on weather and thermal demand.

⚡

Chiller System Manager (CSM) Integration

Coordinates multiple chillers, primary/secondary pumps, and cooling tower fans as a single unified thermodynamic plant.

Real-World Case Study Outcomes

Operational Use Cases & Field Impact

Actual documented use cases across Quality Assurance (QA), Reduced Manpower, Efficiency, and Asset Productivity.

Efficiency

Efficiency (Ambient-Temperature Driven AC Optimization)

Ambient-temperature-driven AC optimization yielded ₹1,80,000 in 2022 and ₹2,10,000 in 2023 in direct power savings at Airport of India.

Productivity & Asset Protection

Productivity & Asset Protection (CNS & Clean Room Envelopes)

Maintains ultra-strict temperature and humidity tolerances for sensitive navigation electronics and clean room production batches.

Efficiency

Efficiency (Approach Optimizer & Heat Exchanger Health)

Implements strategies to optimize the temperature approach in chillers and cooling towers, catching fouling early.

Reduced Manpower

Reduced Manpower (Automated Free Cooling Transitions)

Automatically switches between Free Cooling, Economizer, and Boost Cooling based on outdoor wet-bulb temperatures without technician manual switching.

Architectural Contrast

Comparison with Traditional SCADA / Legacy Systems

Point-by-point contrast demonstrating the technological shift from legacy industrial automation to the Terrestrial Platform.

Traditional Legacy Systems / Traditional SCADA TerraHVAC Terrestrial Platform Advantage
Chillers run at static design setpoints (e.g. 7°C chilled water) regardless of ambient outdoor wet-bulb variations. Dynamic thermodynamic setpoint optimization adjusting chilled and condenser water setpoints continuously based on real-time loads.
Low delta-T syndrome forcing facilities to start redundant chillers and pumps to circulate water through bypassed coils. AI valve throttling ensuring every cooling coil extracts maximum thermal duty, restoring proper return delta-T.
Cooling tower scaling and tube fouling discovered only after chillers trip on high-pressure discharge alarms. Approach Optimizer continuously calculates temperature approach in heat exchangers, predicting tube cleaning needs.
BirdEye Operational Architecture

End-to-End System Diagram & Data Pipeline

Visual architecture diagram representing field telemetry ingestion, deterministic edge fabric, AI reasoning, and closed-loop actuation.

Layer 01 ❄️
Chiller & Hydronic Ingestion
High-precision acquisition from chilled water flowmeters, primary/secondary pump VFDs, cooling tower fan tachometers, and RTD temperature sensors.
BACnet/IPModbus RTU/TCPClass 1 BTU Meters
Layer 02 ⚡
Hydronic Loop Stream
Sub-second thermal loop balance streaming, condenser water temperature gradient tracking, and flow pressure differential buffering.
Hydronic Loop StreamDifferential Pressure BusThermal Energy Buffer
Layer 03 🔄
Chiller COP Optimizer
Non-linear chiller staging algorithms, dynamic cooling tower wet-bulb approach minimization, Delta-T syndrome mitigation, and pump VFD affinity curves.
Chiller Staging AIApproach Temp OptimizerDelta-T Syndrome AI
Layer 04 🎯
VFD & Valve Cockpit
Closed-loop primary/secondary pump VFD frequency modulation, cooling tower fan sequencing, and ANSI/ISA-101 central plant optimizer dashboards.
Pump VFD ModulationFan Staging ControlISA-101 Plant HMI
DATA PIPELINE FLOW: Chiller & Hydronic Sensor Telemetry ➔ Thermodynamic Loop Stream ➔ Dynamic Chiller COP & Delta-T Optimization ➔ Closed-Loop VFD & Valve Actuation
