What TerraGridX Will Do
Specific operational functions and engineering capabilities directly sourced from technical documentation.
Automated COMTRADE Harvest
Continuous retrieval of IEEE C37.111-1991/1999/2013 CFG, DAT, and CFF files across distributed IEDs.
Full-Cycle Sliding-Window DFT Phasor Engine
Extracts instantaneous fundamental phasors and symmetrical sequence components (positive, negative, zero).
K₀-Compensated R-X Impedance Loops
Computes fault impedance trajectory on complex R-X plane to pinpoint distance to line fault.
IEC 60255 IDMT Protection Curve Verification
Validates Standard Inverse, Very Inverse, and Extremely Inverse overcurrent trip curves against actual relay times.
Operational Use Cases & Field Impact
Actual documented use cases across Quality Assurance (QA), Reduced Manpower, Efficiency, and Asset Productivity.
Productivity & SAIDI/SAIFI Reduction (Fault Localization)
Calculates exact fault distance down to tower numbers within 30 seconds of line trip, guiding repair crews directly to the spot. (TerraGridX openwiki).
Reduced Manpower (Automated Remote COMTRADE Ingestion)
Replaces manual substation visits with automated background harvesting of IEEE C37.111 COMTRADE files across all connected relays. (TerraGridX openwiki).
QA & Protection Coordination (IEC 60255 IDMT Verification)
Compares recorded trip times against Standard Inverse, Very Inverse, and Extremely Inverse curves to flag miscoordinated relay settings. (TerraGridX openwiki).
Efficiency (Circuit Breaker Arcing & Timing Audit)
Measures trip coil currents and breaker arcing times during each fault to schedule breaker overhauls before failures occur.
Comparison with Traditional SCADA / Legacy Systems
Point-by-point contrast demonstrating the technological shift from legacy industrial automation to the Terrestrial Platform.
| Traditional Legacy Systems / Traditional SCADA | TerraGridX Terrestrial Platform Advantage |
|---|---|
| Engineers must manually travel to remote substations with laptops to download oscillography files after grid blackouts. | Instant automated harvesting of CFG, DAT, and HDR files across hundreds of distributed IEDs over WAN. |
| Manual inspection of raw sine wave traces taking days to determine breaker opening times and fault types. | Instantaneous AI waveform diagnostics calculating fault impedance, arc resistance, and clearing times in seconds. |
| Unsynchronized relay clocks leading to conflicting theories of what caused the blackout. | GPS and PTP nanosecond-synchronized timeline stitching proving the precise root cause without dispute. |
End-to-End System Diagram & Data Pipeline

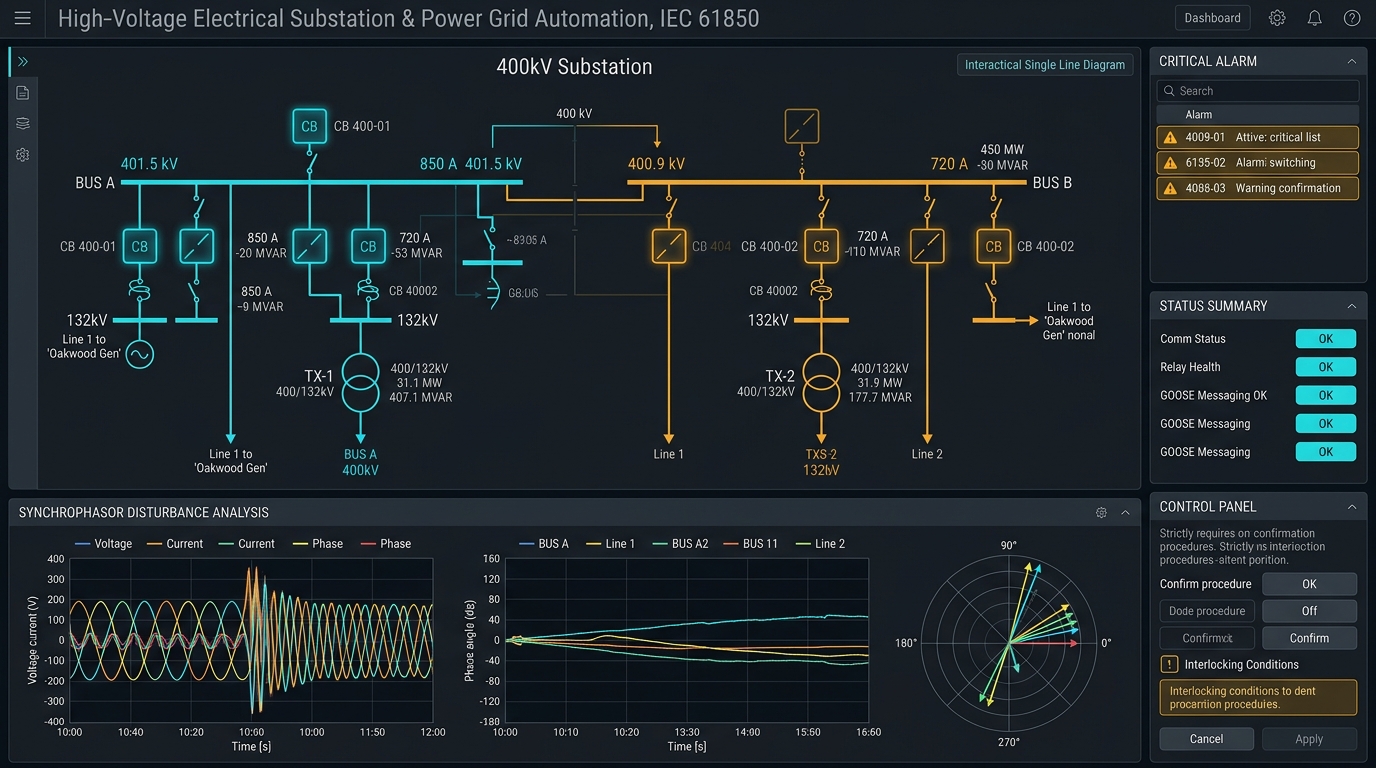

Visual architecture diagram representing field telemetry ingestion, deterministic edge fabric, AI reasoning, and closed-loop actuation.
